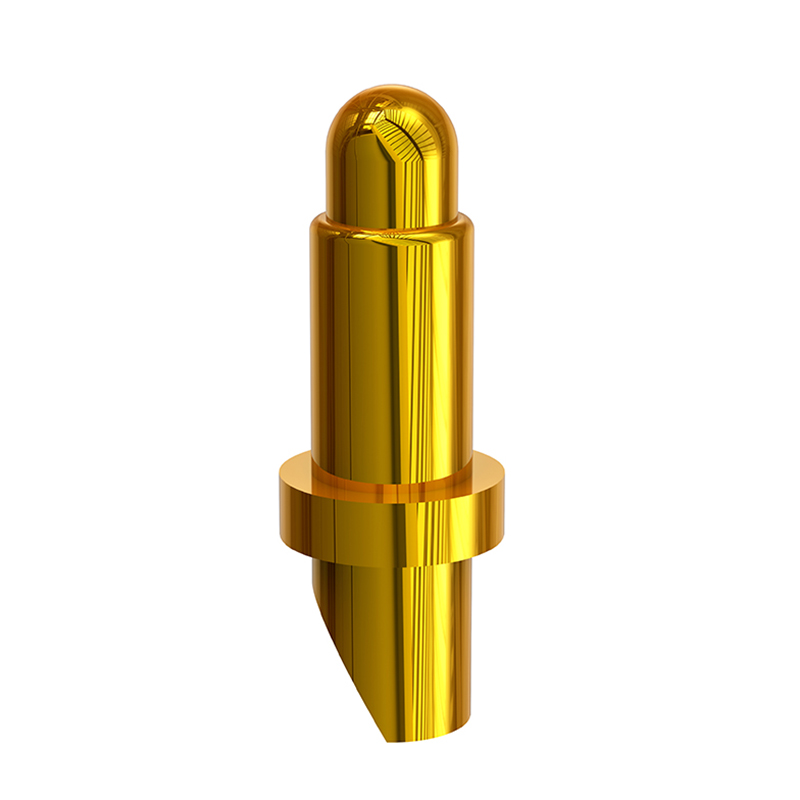

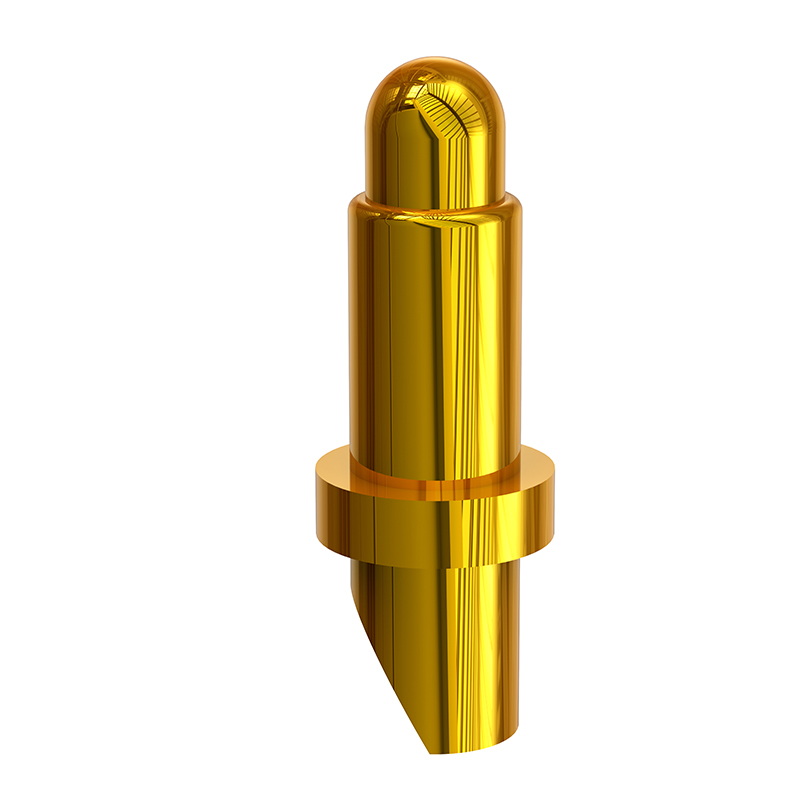

Cheap Customized Spring Loaded Pogo Pin Factory, Factories

1 / 2

Cheap Customized Spring Loaded Pogo Pin Factory, Factories

1.Good stability and long using life. 2.Structure is simple and compact. 3.Saving space and easy to connect with PCB.

Send Inquiry

Product Description

Material	Plunger/barrel: Brass Spring: Stainless steel
Electroplating	Plunger: 10 micro-inch minimum Au over 50-120 micro-inch nickel Barrel: 5 micro-inch minimum Au over 50-120 micro-inch nickel Spring: 1 micro-inch minimum Au over 10-50 micro-inch nickel
Electrical specification	Contact electrical resistor: 50 mOhm Max. Rated voltage: 5V DC Max Rated current: 1.5A
Mechanical performance	Life: 10,000 cycle min.

Applications

Intelligent wearable devices: Smart watches, smart wristbands, locator devices, Bluetooth headphones, smart wristbands, smart shoes, smart glasses, smart backpacks, etc.

Smart home: Smart appliances, air purifiers, automatic controllers, etc.

Medical equipment: Wireless charging equipment, data communication equipment, telecommunications equipment, automation and industrial equipment, etc;

3C consumer electronics: Laptops, tablets, PDAs, handheld data terminals, etc.

Aviation, aerospace: Military communication, military electronics, automobiles, vehicle navigation, testing fixtures, testing equipment, etc

Frequently Asked Questions

What materials are used in these connector components?

The plunger and barrel are made of high-quality Brass, while the spring is constructed from durable Stainless Steel.

What is the electroplating standard for the connector parts?

The plunger is plated with a minimum of 10 micro-inch Au over 50-120 micro-inch nickel, the barrel has a minimum of 5 micro-inch Au over 50-120 micro-inch nickel, and the spring has a minimum of 1 micro-inch Au over 10-50 micro-inch nickel.

What are the electrical ratings of these connectors?

The contact electrical resistance is capped at 50 mOhm Max, with a rated voltage limit of 5V DC Max, and a rated current limit of 1.5A.

How long is the mechanical life cycle of this connector?

These connectors feature high durability and are designed for a mechanical performance lifespan of at least 10,000 cycles.

Which industries and products commonly use these connectors?

They are highly versatile and widely used in intelligent wearables (smart watches/glasses), smart home appliances, medical equipment, 3C consumer electronics (laptops/tablets), and aerospace or vehicle navigation testing systems.
