Engineered for secure blind-mating, waterproofing, high vibration resilience, and rapid charging throughput.
In the modern technological landscape, physical connectors are no longer just passive transmission points; they are key components in dictating the safety, ergonomics, and reliability of next-generation hardware. Custom magnetic connectors, powered by spring-loaded pogo pin configurations, are at the forefront of this movement.
As an industry-leading magnetic connector supplier and factory, Shenzhen Rongqiangbin Electronic Hardware Co., Ltd. resolves complex electrical pathing challenges for OEM and ODM customers worldwide. By combining self-mating magnetic attraction with high-reliability spring probes, we deliver robust solutions that endure mechanical shocks, eliminate user-error insertion damages, and guarantee ingress protection (IP67/IP68) ratings.
This whitepaper outlines the structural mechanics, material optimizations, global industry standards, procurement vectors, and technological paths defining the next decade of magnetic connector engineering.
Shenzhen Rongqiangbin Electronic Hardware Co., Ltd.: Driving Pogo Pin Technology Since 2011
Founded in February 2011 and headquartered in the Songgang District of Shenzhen—the geographic core of the Guangdong-Hong Kong-Macao Greater Bay Area—Shenzhen Rongqiangbin Electronic Hardware Co., Ltd. (abbreviated as RQB) has evolved from a specialized components workshop into a globally trusted developer and manufacturer of high-end Pogo Pin connectors.
Guided by our core principles of "customer first, integrity first," RQB maintains a robust technical R&D and production team dedicated to breaking boundaries in electrical interconnect technology. With custom, high-precision tooling and automatic assembly systems, we supply multinational tech giants, offering tailor-made designs from early-stage prototyping to full-scale mass manufacturing.
We are a certified ISO9001:2015 manufacturer, operating an integrated environmental control framework to ensure that every magnetic connector leaving our plant aligns with strict RoHS, REACH, and conflict-free mineral mandates.
Optimizing electrical, mechanical, and supply chain layers for complex deployments.
"Committed to be excellent POGO PIN manufacturers for both quality and cost at home and abroad, and leading connector technology development."
Decoding the electro-mechanical structural components of high-reliability magnetic pogo-pin modules.

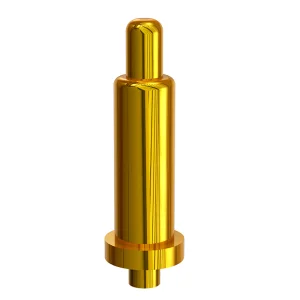

Plungers are precision-turned from high-conductivity brass or beryllium copper alloys, then plated with barrier layers of Nickel (or Palladium-Nickel) and thick Gold (up to 50u"). This structure mitigates electrolytic corrosion in sweat-exposed wearables.
We source N52 Neodymium Iron Boron (NdFeB) permanent magnets. Magnet configurations are encapsulated using nickel-copper-nickel (Ni-Cu-Ni) electroplating or specialized epoxy coatings, ensuring strong pull force and long life cycles without magnetic degradation.
By using secondary injection over-molding processes and custom silicone elastomer gaskets, our multi-pin magnetic connectors protect electronics against dust ingress and high-pressure water submersion, critical for ruggedized portable tech.
Unlike standard micro-USB or USB-C interfaces, which require specific manual orientation, a magnetic pogo pin connector relies on integrated magnetic arrays to guide alignment automatically. The magnetic pull force is calibrated to match the mechanical spring preload of the pins. This balance ensures optimal mechanical contact without requiring excessive force, which could damage mating components.
Our spring-loaded designs maintain a stable contact resistance (typically under 30mΩ) across dynamic cycles. This performance makes them well-suited for devices subjected to continuous vibration, including automotive dashboards and portable clinical monitors.
From initial application requirements to mass injection molding and final batch delivery.
Calculation of spring force, magnetic field modeling, and structural finite element analysis.
Rapid CNC machining of pins and housing. 3D printed samples produced in 5-7 business days.
Environmental testing, salt-spray exposure, and high-frequency cycle life assessments.
Automated assembly, progressive die pressing, and high-yield volume production runs.
Global supply chain managers face three primary risks when sourcing magnetic connectors: signal integrity drift, magnet oxidation, and mechanical degradation. By shifting component procurement to a vertically integrated factory like Rongqiangbin, buyers receive detailed inspection reports covering:
Our formulations match the criteria for advanced industrial environments. High-performance thermoplastic insulators like LCP (Liquid Crystal Polymer) and Nylon 9T are chosen to withstand lead-free reflow soldering profiles (up to 260°C peak temperatures). This selection ensures that multi-pin SMT (Surface Mount Technology) components do not experience deformation or dimensional changes during production run processes.
How industries deploy magnetic connectors to balance usability with mechanical reliability.
Non-invasive sensors, medical cart interfaces, and portable defibrillators require quick disconnects. In these designs, magnetic connectors provide rapid release mechanisms that prevent equipment damage if cables are pulled, while supporting reliable signal and power transmission.
Smartwatches, smart glasses, and TWS Bluetooth earbuds utilize low-profile, sweat-resistant magnetic pogo interfaces. These systems save internal PCB layout area while allowing for reliable, airtight outer casing designs.
Automated guided vehicles (AGVs), warehouse robotics, and shared electric mobility units rely on automatic docking chargers. Rugged mechanical housings protect these systems from physical impact and support efficient high-current charging.
Addressing engineering, testing, and lifecycle durability considerations for development teams.
Custom engineering for special mechanical bases, custom cable assemblies, and board-to-board mating styles.
