Our Vision
Committed to be excellent POGO PIN manufacturers for both quality and cost on home and abroad, and leading connector technology development.

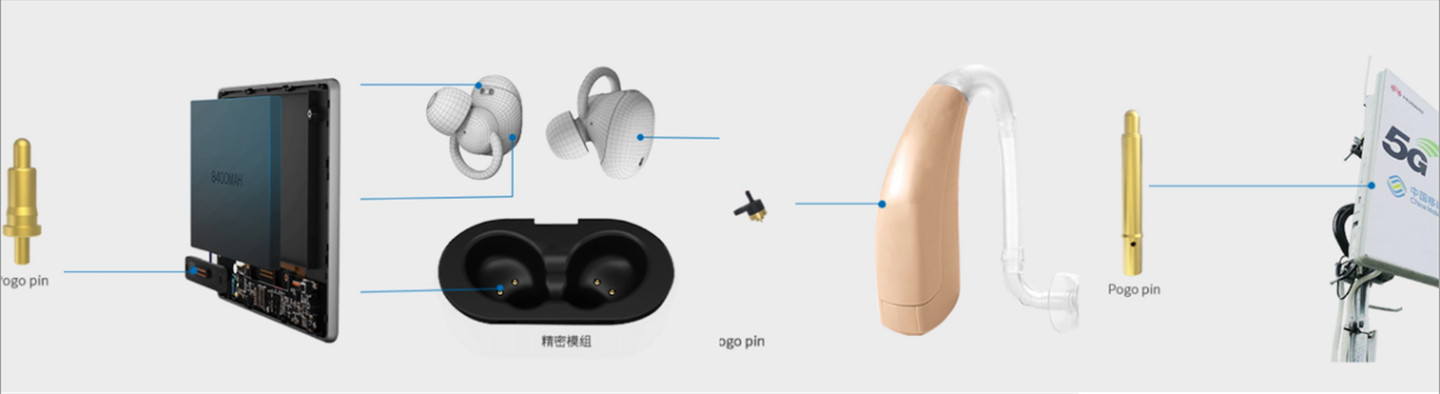

Applications
-
Intelligent wearable devices: Smart watches, smart wristbands, locator devices, Bluetooth headphones, smart shoes, smart glasses, smart backpacks, etc.
-
Smart home & appliances: Smart home systems, smart appliances, air purifiers, automatic controllers, etc.
-
Medical & Industrial equipment: Medical equipment, wireless charging equipment, data communication equipment, telecommunications equipment, automation and industrial equipment, etc.
-
3C consumer electronics: Laptops, tablets, PDAs, handheld data terminals, etc.
-
Aviation & Automotive: Aviation, aerospace, military communication, military electronics, automobiles, vehicle navigation, testing fixtures, testing equipment, etc.

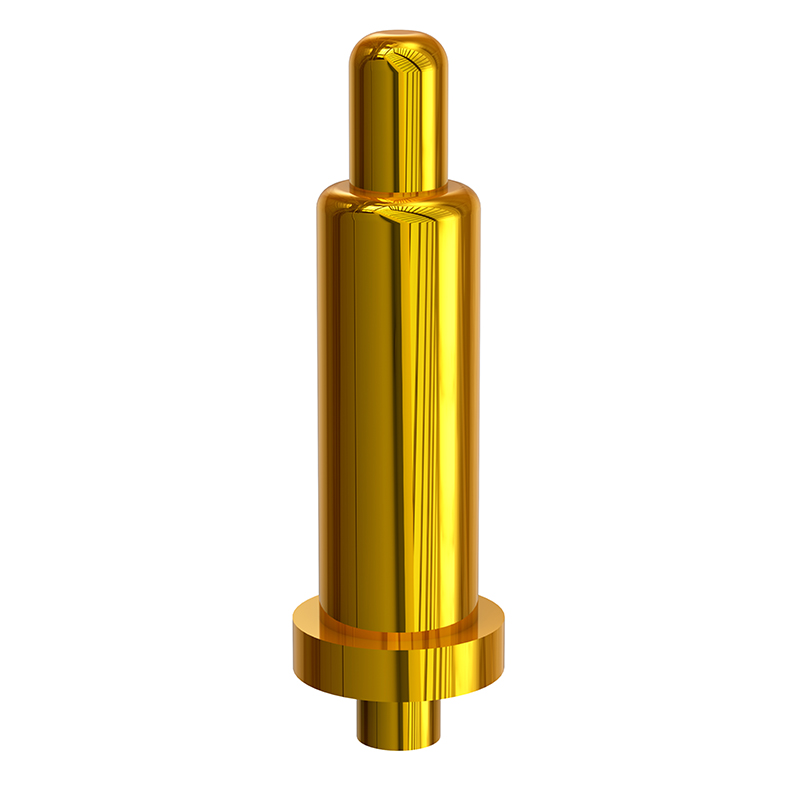

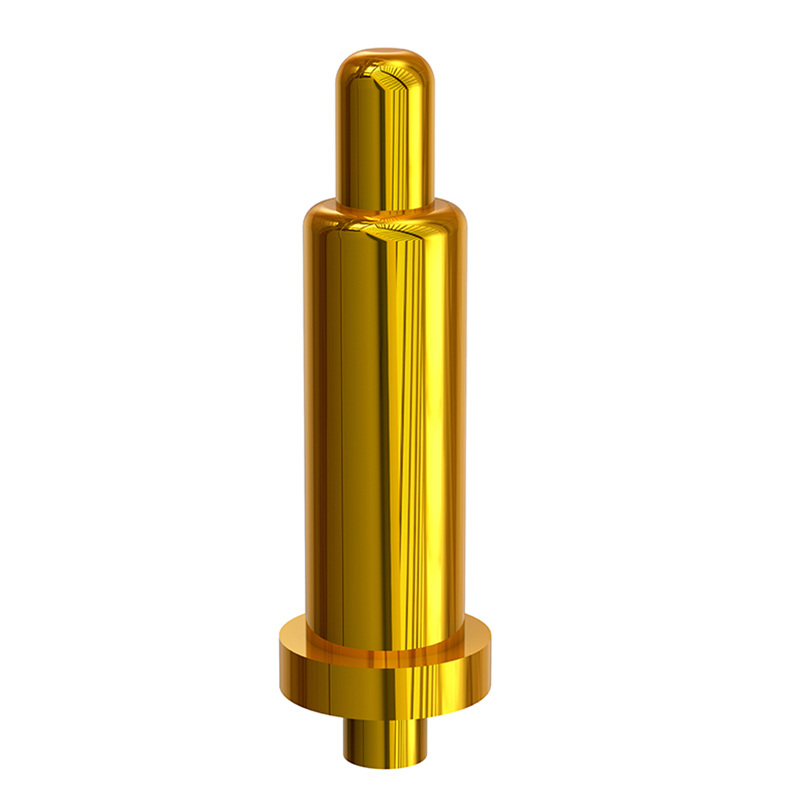

Technical Specifications
| Parameter |
Specification Details |
| Material |
Plunger/barrel: Brass
Spring: Stainless steel
|
| Electroplating |
Plunger: 4 micro-inch minimum Au over 50-120 micro-inch nickel
Barrel: 4 micro-inch minimum Au over 50-120 micro-inch nickel
|
| Electrical Specification |
Contact electrical resistor: 100 mOhm Max.
Rated voltage: 12V DC Max
Rated current: 1.0A
|
| Mechanical Performance |
Life: 10,000 cycle min. |
Frequently Asked Questions
What materials are used in the manufacturing of the POGO PIN?
The plunger and barrel of the POGO PIN are manufactured using high-quality brass, while the internal spring is made of robust stainless steel.
What are the electroplating specifications for the plunger and barrel?
Both the plunger and the barrel feature a minimum of 4 micro-inch Au (gold) plating over a 50-120 micro-inch nickel base to ensure premium conductivity and durability.
What is the rated voltage and current for these connectors?
These POGO PIN connectors support a maximum rated voltage of 12V DC and a rated current of 1.0A.
How durable are these POGO PIN connectors in terms of cycle life?
Our POGO PIN connectors are engineered for high mechanical performance, offering a minimum durability life of 10,000 cycles.
Which industries and devices can utilize these POGO PIN connectors?
They are highly versatile and widely used in intelligent wearables (smart watches, Bluetooth headphones), smart home appliances, medical and industrial automation equipment, 3C consumer electronics, and aviation/automotive testing systems.
