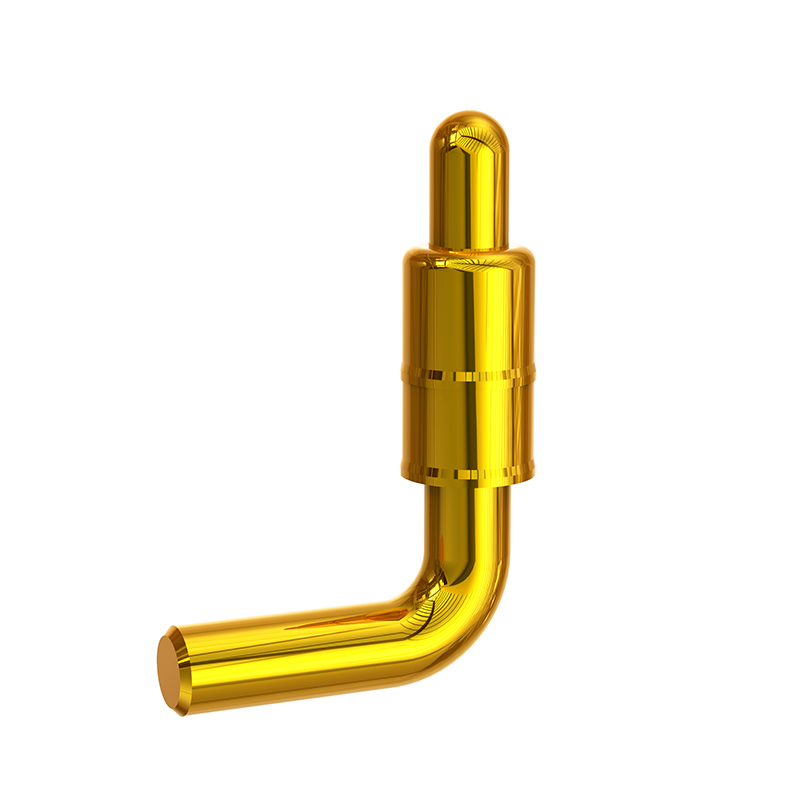

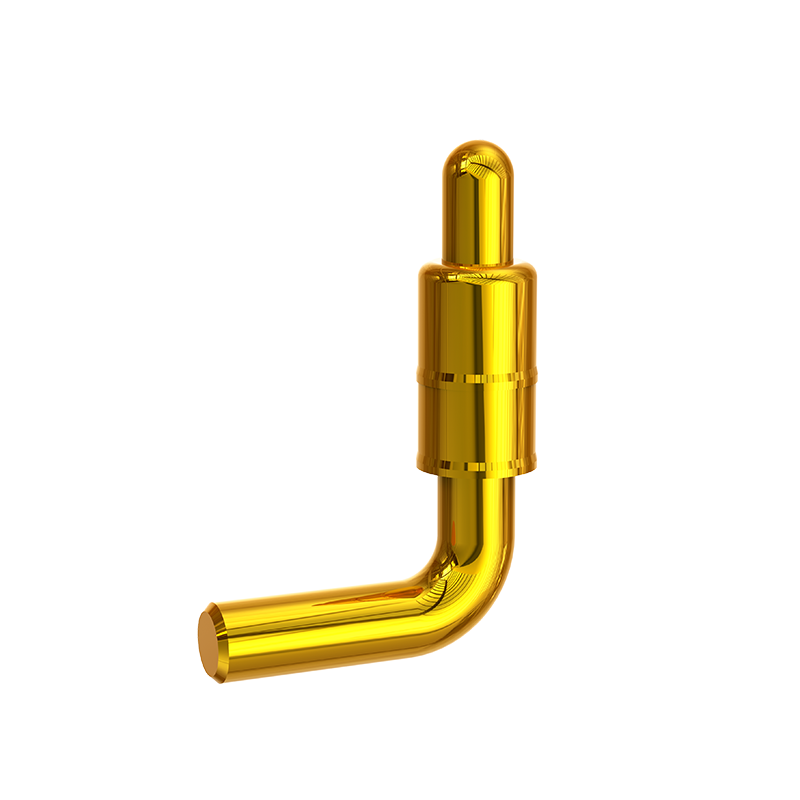

OEM Bending Type Spring Pogo Pins Manufacturers, Factories

1. Good stability and long using life. 2. Structure is simple and compact. 3. Saving space and easy to connect with PCB.

Send Inquiry

Product Description

Technical Specifications

Material	Plunger/barrel: Brass Spring: Stainless steel
Electroplating	Plunger: 3 micro-inch minimum Au over 50-120 micro-inch nickel Barrel: 1 micro-inch minimum Au over 50-120 micro-inch nickel Spring: 1 micro-inch minimum Au over 50-120 micro-inch nickel
Electrical Specification	Contact electrical resistor: 50 mOhm Max. Rated voltage: 12V DC Max Rated current: 4.0A
Mechanical Performance	Life: 10,000 cycle min.

Applications

Intelligent Wearable Devices: Smart watches, smart wristbands, locator devices, Bluetooth headphones, smart shoes, smart glasses, smart backpacks, etc.
Smart Home: Smart appliances, air purifiers, automatic controllers, etc.
Medical & Industrial Equipment: Medical equipment, wireless charging equipment, data communication equipment, telecommunications equipment, automation and industrial equipment, etc.
3C Consumer Electronics: Laptops, tablets, PDAs, handheld data terminals, etc.
Aerospace & Automotive: Aviation, aerospace, military communication, military electronics, automobiles, vehicle navigation, testing fixtures, testing equipment, etc.

Frequently Asked Questions

1. What materials are used to manufacture these connectors?

The plunger and barrel are made of high-quality Brass, while the spring is made of durable Stainless steel, ensuring optimal conduction and physical resilience.

2. What are the electroplating specifications for the components?

The plunger features a minimum of 3 micro-inch Au over 50-120 micro-inch nickel. Both the barrel and the spring feature a minimum of 1 micro-inch Au over 50-120 micro-inch nickel plating to prevent oxidation and ensure reliable connectivity.

3. What is the rated current and voltage for these connectors?

The rated current is 4.0A, and the rated voltage is 12V DC Max, making them highly suitable for both low-power signals and fast-charging applications.

4. What is the expected lifespan (durability) of the spring mechanism?

The connectors are rated for a mechanical life of at least 10,000 mating cycles under standard operating conditions.

5. Can these connectors be used in medical and wearable electronics?

Yes, they are highly compatible with wearable devices like smart watches and wristbands, as well as high-precision medical equipment and wireless charging platforms.
