| Specification Category | Technical Details |
|---|---|
| Material |
Plunger: Brass Barrel: SUS316F Spring: Stainless steel |
| Electroplating |
Plunger: 5 micro-inch minimum Au over 50-120 micro-inch nickel Barrel: 50-100 micro-inch minimum Cu over 100-150 micro-inch nickel Spring: 1 micro-inch minimum Au over 30-50 micro-inch nickel |
| Electrical Specification |
Contact electrical resistor: 100 mOhm Max. Rated voltage: 12V DC Max Rated current: 1.0A |
| Mechanical Performance |
Life: 10,000 cycle min. |
Remark: Considering the difference between the test spot and the actual work spot, the impedance test condition is based on the whole working stroke. This is what we generally refer to as dynamic impedance testing, which differs from the static test condition of EIA-364-23. The durability test standard is also based on this test condition.
Smart wearable products (wristbands, watches)
Mobile phones (mobile antenna)
Digital cameras
Laptops
Bluetooth headsets
Learning machines & games
Handheld game consoles
GPS satellite navigation
Aerospace electronics
Medical equipment
Military communications
Portable electronic products

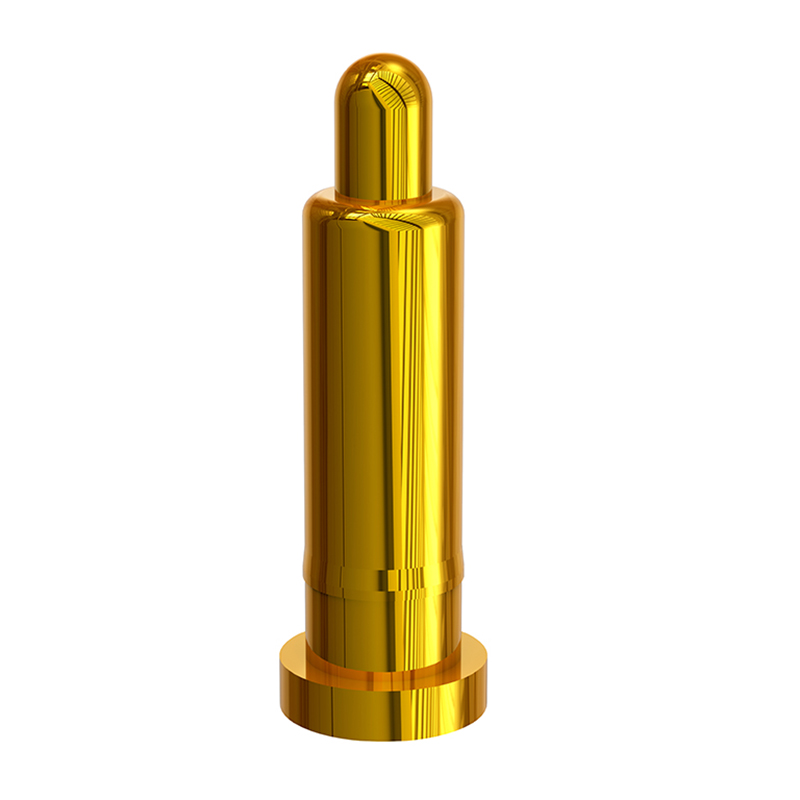

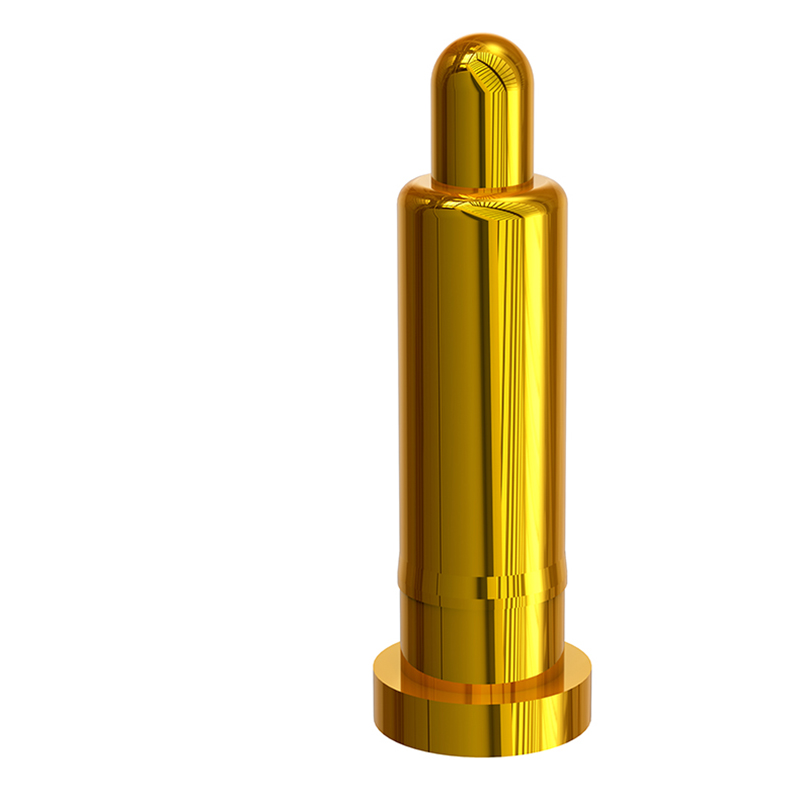

The plunger is made of Brass, the barrel is made of SUS316F, and the spring is constructed from Stainless steel.
The Plunger features a minimum of 5 micro-inch Au over 50-120 micro-inch nickel. The Barrel features a minimum of 50-100 micro-inch Cu over 100-150 micro-inch nickel. The Spring features a minimum of 1 micro-inch Au over 30-50 micro-inch nickel.
It supports a maximum contact electrical resistance of 100 mOhm, a maximum rated voltage of 12V DC, and a rated current of 1.0A.
The connector is rated for a minimum durability life of 10,000 cycles.
The impedance test condition is based on the dynamic impedance testing of the whole working stroke, which accounts for differences between test spots and actual work spots, distinguishing it from static test conditions.
They are suitable for smart wearables, mobile phones, digital cameras, laptops, Bluetooth headsets, game devices, aerospace and medical equipment, and other portable electronic products.
