| Material |
Plunger/barrel: Brass Spring: Stainless steel |
| Electroplating |
Plunger: 10 micro-inch minimum Au over 50-120 micro-inch nickel Barrel: 10 micro-inch minimum Au over 50-120 micro-inch nickel |
| Electrical specification |
Contact electrical resistor: 100 mOhm Max. Rated voltage: 12V DC Max Rated current: 3.0A |
| Mechanical performance | Life: 10,000 cycle min. |
When choosing the right material for your pogo pin product, it is important to consider several key factors. The first and most important factor is the intended use of the product. Will it be used in high temperature or corrosive environments? Will it be used in a harsh outdoor environment or a controlled laboratory environment?
Typically, pogo pins are made of materials such as brass, stainless steel, and beryllium copper. Each of these materials has its own unique set of properties that make it suitable for different applications.
Ultimately, the material you choose for your pogo pin product will depend on the specific requirements of your application. Consulting with a knowledgeable pogo pin manufacturer can help you make the best decision for your needs.
In summary: When choosing a material for your pogo pin product, please consider factors such as intended use, cost, conductivity, and durability. By understanding the properties of different materials and their suitability for different applications, you can make informed decisions that will help ensure the longevity and effectiveness of your products.

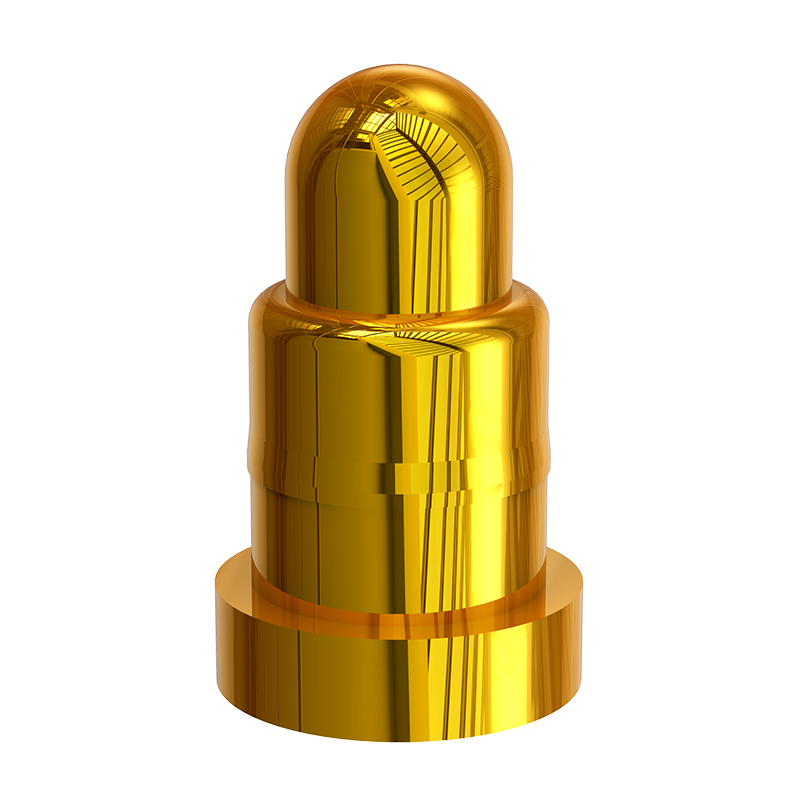

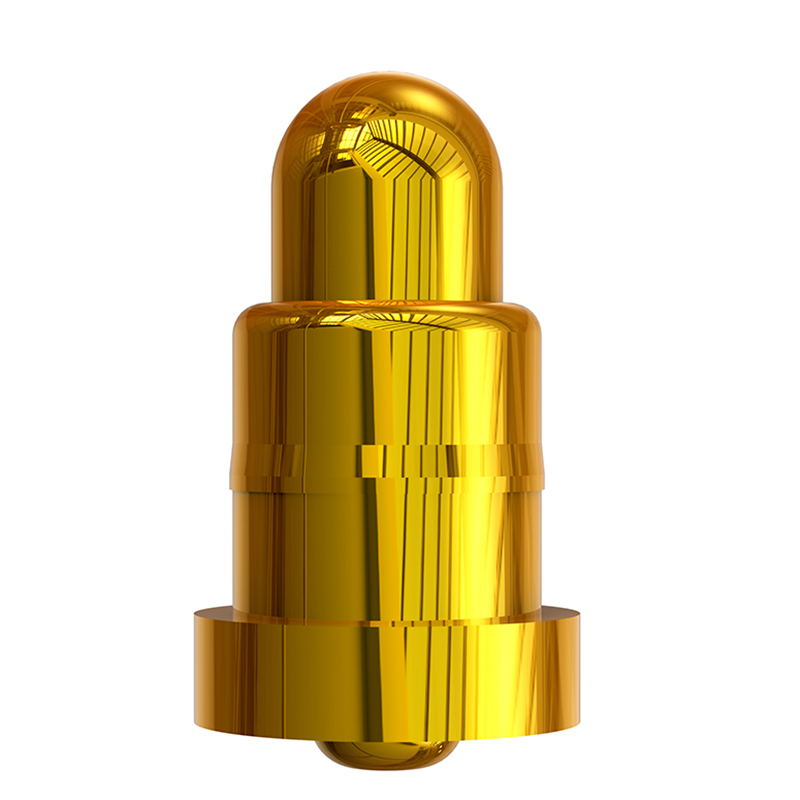

Pogo pins typically feature a brass plunger and barrel due to its excellent machinability and conductivity, while the internal spring is made of stainless steel for durable mechanical tension.
Gold plating offers superior electrical conductivity, low contact resistance, and outstanding corrosion resistance, ensuring stable performance over thousands of connection cycles.
Key electrical parameters include the maximum contact resistance (usually 100 mOhm Max), rated current capacity (such as 3.0A), and maximum rated voltage (such as 12V DC).
Standard quality pogo pins are designed for durability, offering a mechanical life cycle performance of at least 10,000 mating cycles.
Harsh outdoor or high-temperature environments require materials with higher corrosion resistance and mechanical strength, such as stainless steel or beryllium copper, paired with specialized electroplating configurations.
